6 Ton (12,000 lb) Dump Trailer Hydraulic Scissor Hoist Kit – PH416

6 Ton (12,000 lb) Dump Trailer Hydraulic Scissor Hoist Kit – PH416. Comes Painted!!! Free Shipping.

• When Applied to 10′ to 14′ Dump Body Trailers

Dump Bed Trailer Power Hoist Kit – Model PH416 – Perfect for Dump Trailers!

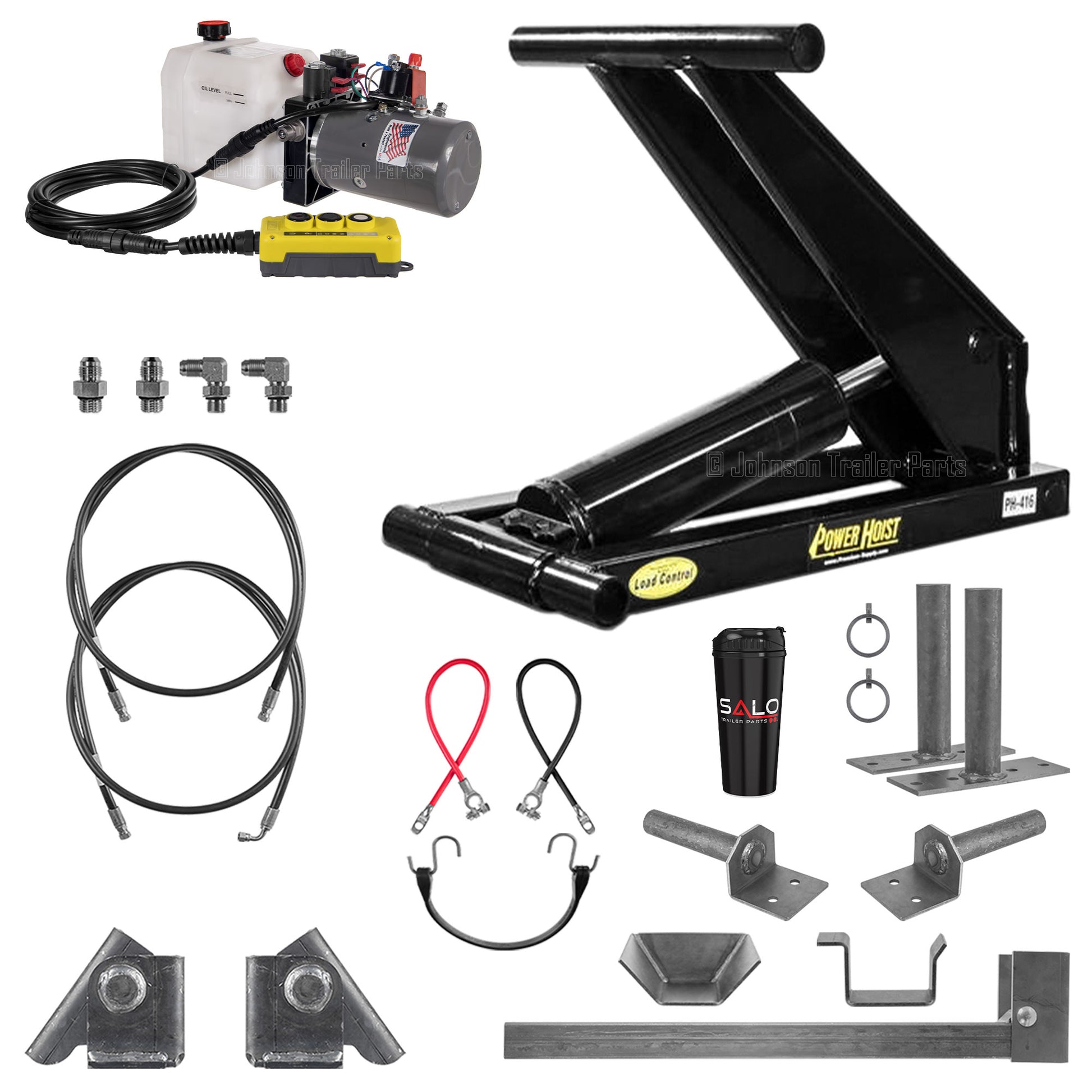

Standard Scissor Hoist Kit Complete with:

• KTI Hydraulic Power Unit (HPU)
  • 15’ Control with Power Up / Power Down / Gravity Down
• Hoist Assembly (including steel frame and hydraulic cylinder)
• Hydraulic Hose Assembly
• Hydraulic Fittings
• Bridon Load Control
• Safety Arm and Safety Arm Cup
• Safety Arm Storage Bracket
• Hinges, Battery Cables, and Rubber Strap
• Safety Labels
• Manual

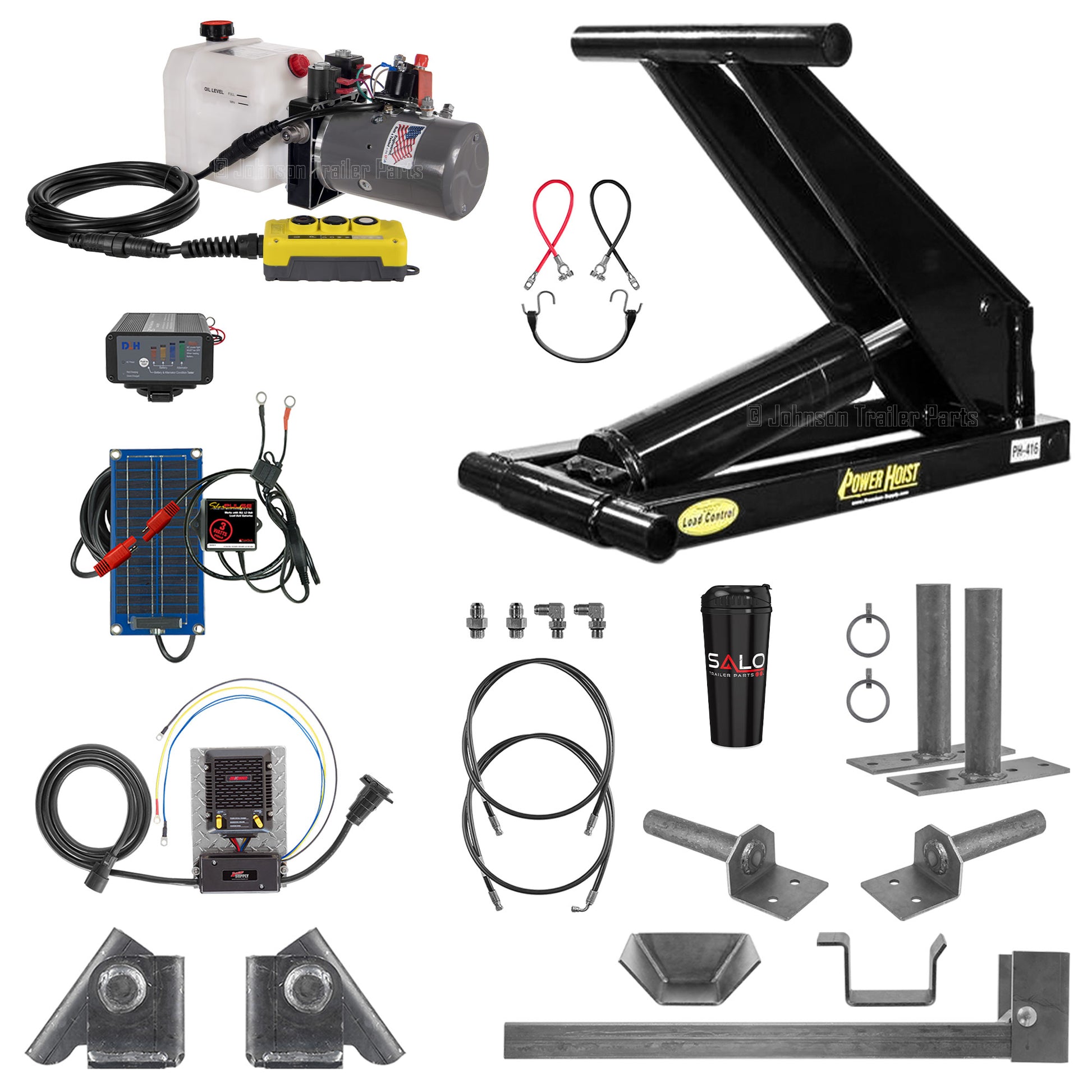

• Deluxe Kit Includes:
  • 3 Wall Solar Charger
  • Panel Mount AC Charger

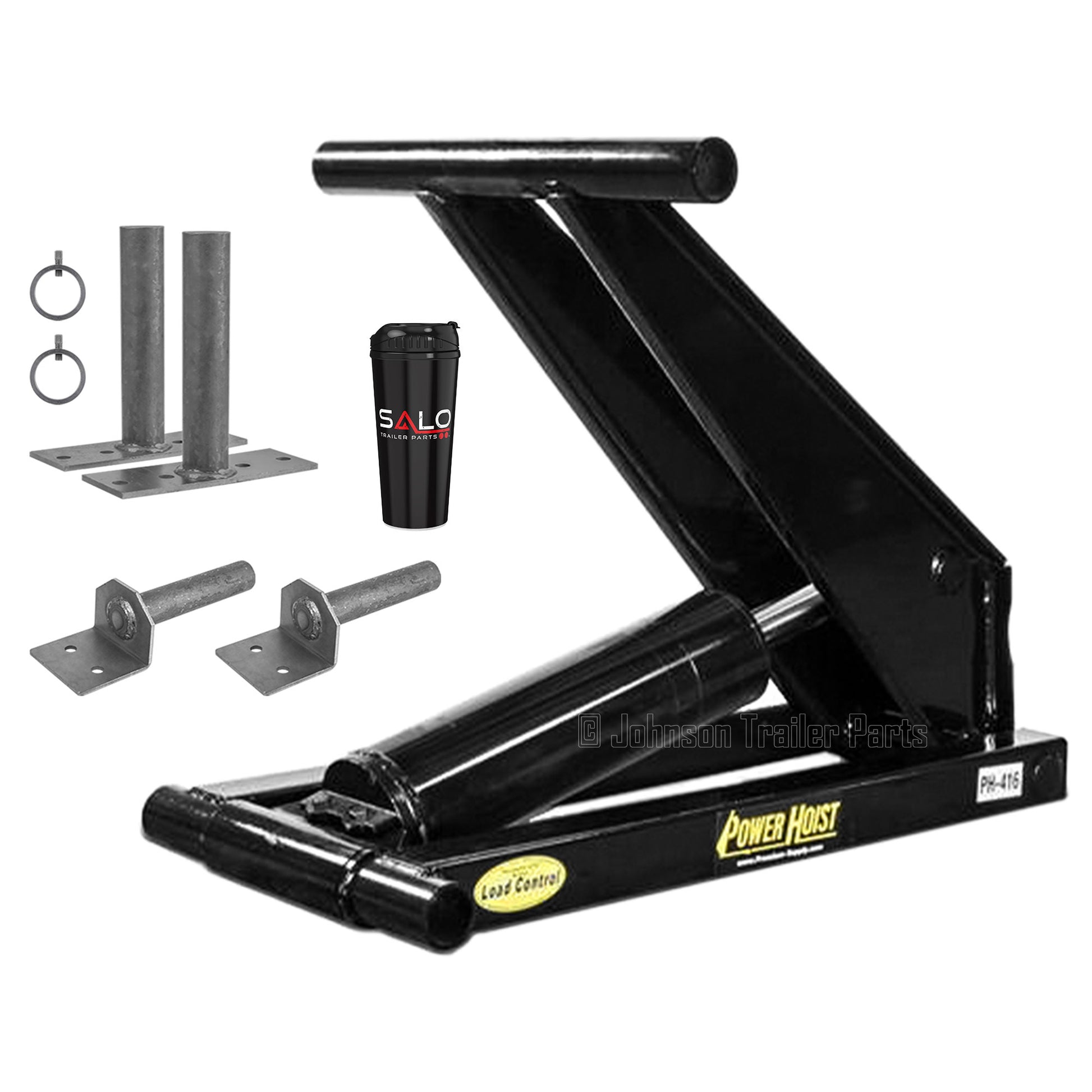

• Hoist Only kit Includes:
  • Scissor Hoist/Cylinder
  • Mounting Brackets

6 Ton (12,000 lb) Dump Trailer Hydraulic Scissor Hoist Kit Warranties:

• Hoist Only: 3 yr Manufacturers Warranty
• Standard Kit: 3 yr Manufacturers Warranty
• Deluxe Kit: 3 yr Manufacturers Warranty

Please contact us if you have any questions we can assist you with. (602) 292-9690

Installation Manual

Installation Instructions: For 12VDC, Hydraulic Power Units, Double-Acting (Power UP / Power DOWN)
