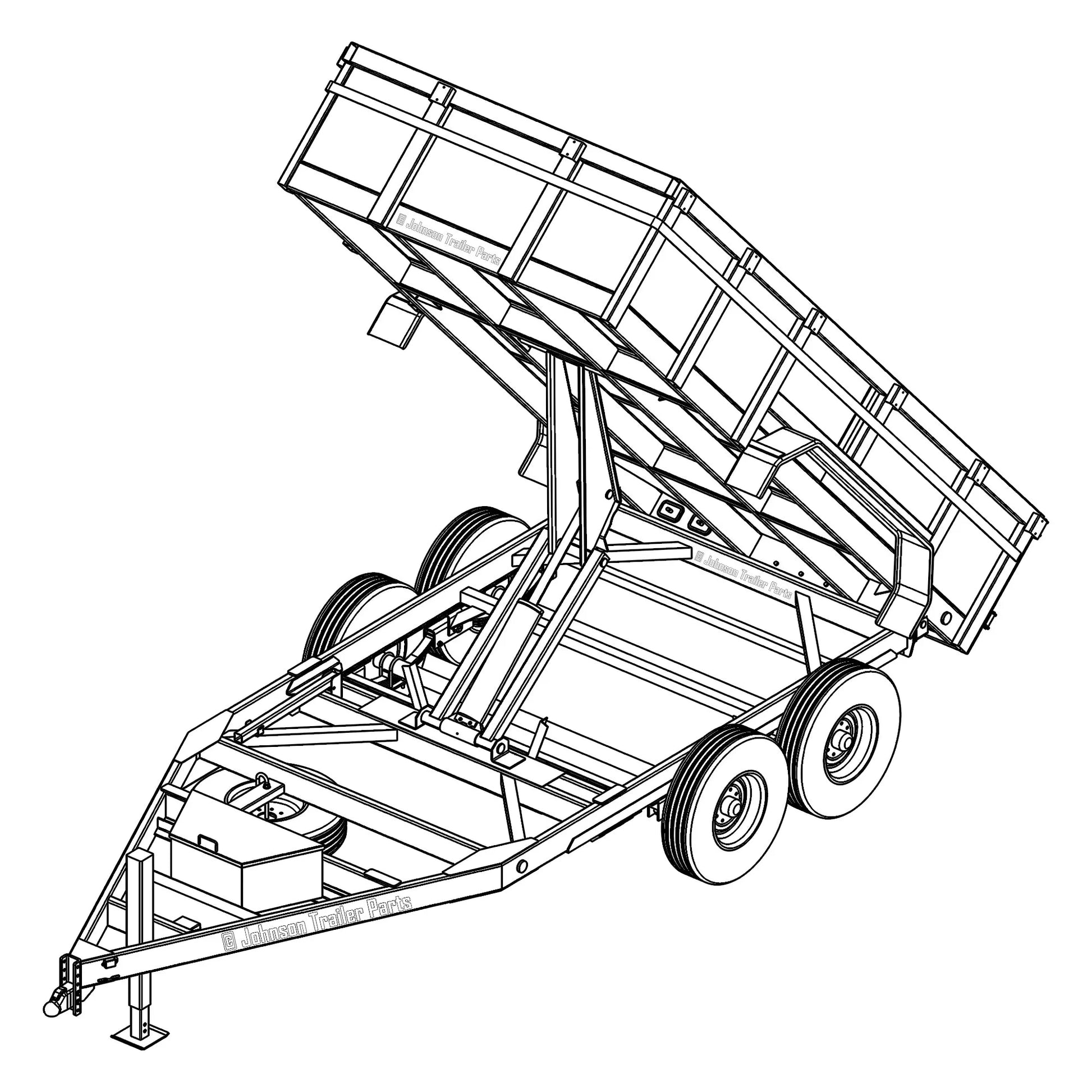

7′ x 14′ Dump Trailer Plans | DT714-14J Trailer Blueprints

Highly Detailed 7′ x 14′ Dump Trailer Plans | DT714-14J Trailer Blueprints. These plans have a matching trailer parts kit available here. This trailer parts kit was created specifically for these plans.

Specifications:

• Model:  DT714-14J
• Box Size:   7′ x 14′
• Max Capacity:   14,000 lbs
• Frame:   2″ x 6″ Rectangular Tubing, 3/16″ Wall
• Deck:   10g Steel

Strength:

• Our Dump trailer blueprints are designed with the full strength in the frame.
• Our Trailer Designs use 2″ x 6″ Rectangle Tubing 3/16″ Wall to give the Strength you need.

Plan Designs:

• A lot of trailer plans only come in 2-5 pages that try to explain the entire design, Our Trailer Plans come with Detailed Illustrations (25-30) pages and (10-15) pages of Instructions. These pages are well thought out to keep it simple and easy to follow along.
• Our Plans include a Detailed Material List by Name, Size and the Trailer Parts Kit you can Purchase directly from us.
  • Our Trailer Parts Kits are Designed Specifically for these Trailer Plans.

Customizing the Trailer:

• We Encourage you to modify the trailer to suit your needs. This is why we put the strength of the trailer into the frame so you can customize it to suit your needs.
• But when is it safe to modify the trailer? You can always contact us and we can help you out. Also read this article here which will give you some Great Insight.

Delivery:

• PDF Download
  • These 7′ x 14′ Dump Trailer Plans | DT714-14J Trailer Blueprints are in an PDF format. To print in any size (8.5 x 11 up to 22 x 17) , or just use from your device. Just place your order then download immediately after purchase, Right from our Website or the Confirmation Email.
  • For easy download, The 7′ x 14′ Dump Trailer Plans | DT714-14J Trailer Blueprints are bundled in a .ZIP file. If you need, a free PDF reader is at Adobe.com and a free ZIP utility at WinZip.com.
  • Accidentally deleted your file? Let us know so we can help you out.
• Paper Copy
  • The Drawings are Printed on 11″ x 17″ Paper and the Construction Instructions are printed on 8.5″ x 11″ Paper. Free Shipping!

The Video below is a video of the Dump Trailer we Built off of these Engineered Dump Trailer Plans.

The Dump Trailer Parts Kit for these Plans are available here.
