8 Ton Hydraulic Scissor Hoist Kit | PH516

• Fits 10′ to 14′ Dump Beds.
• Powder Coated

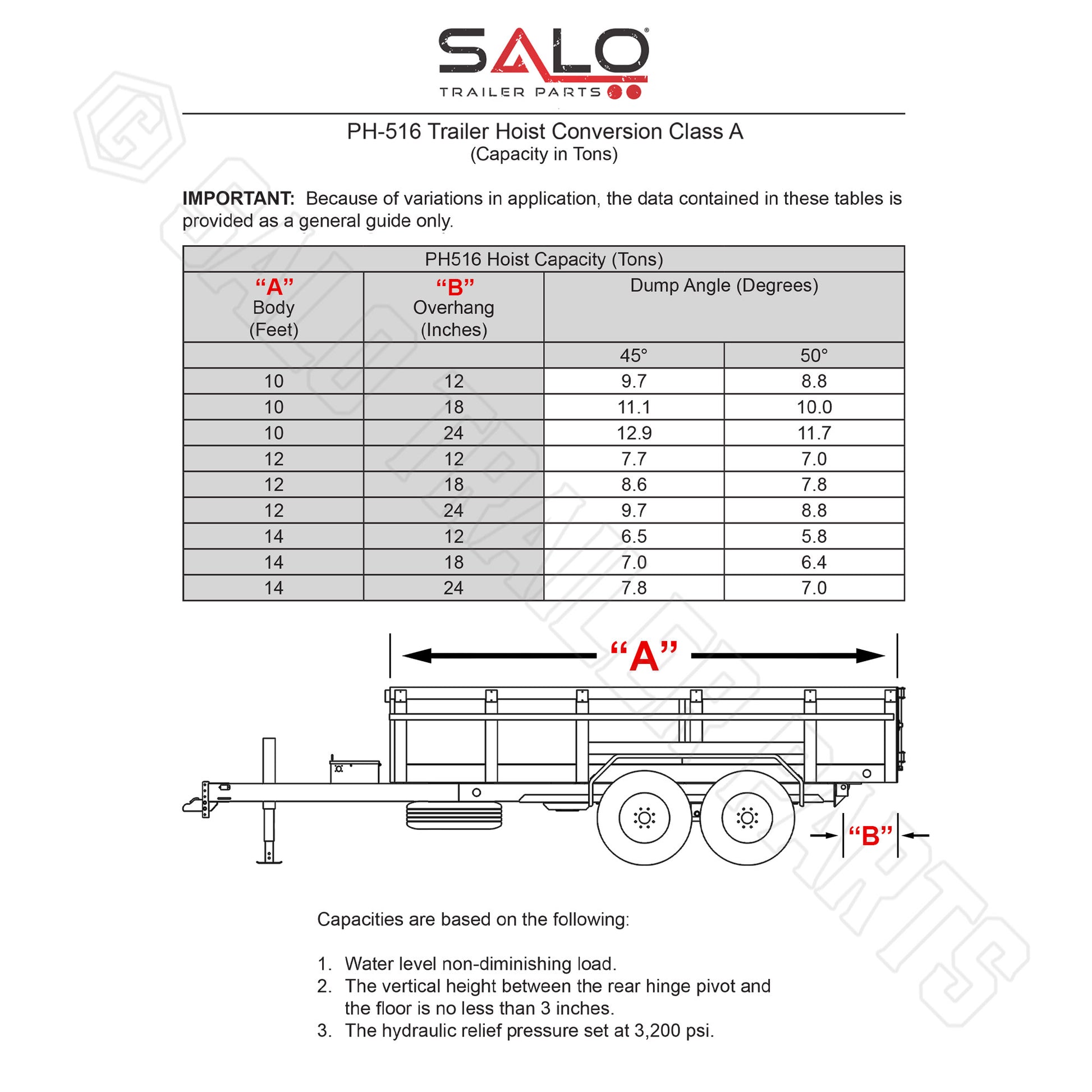

• Check The Specs for Hoist lifting Capacities.

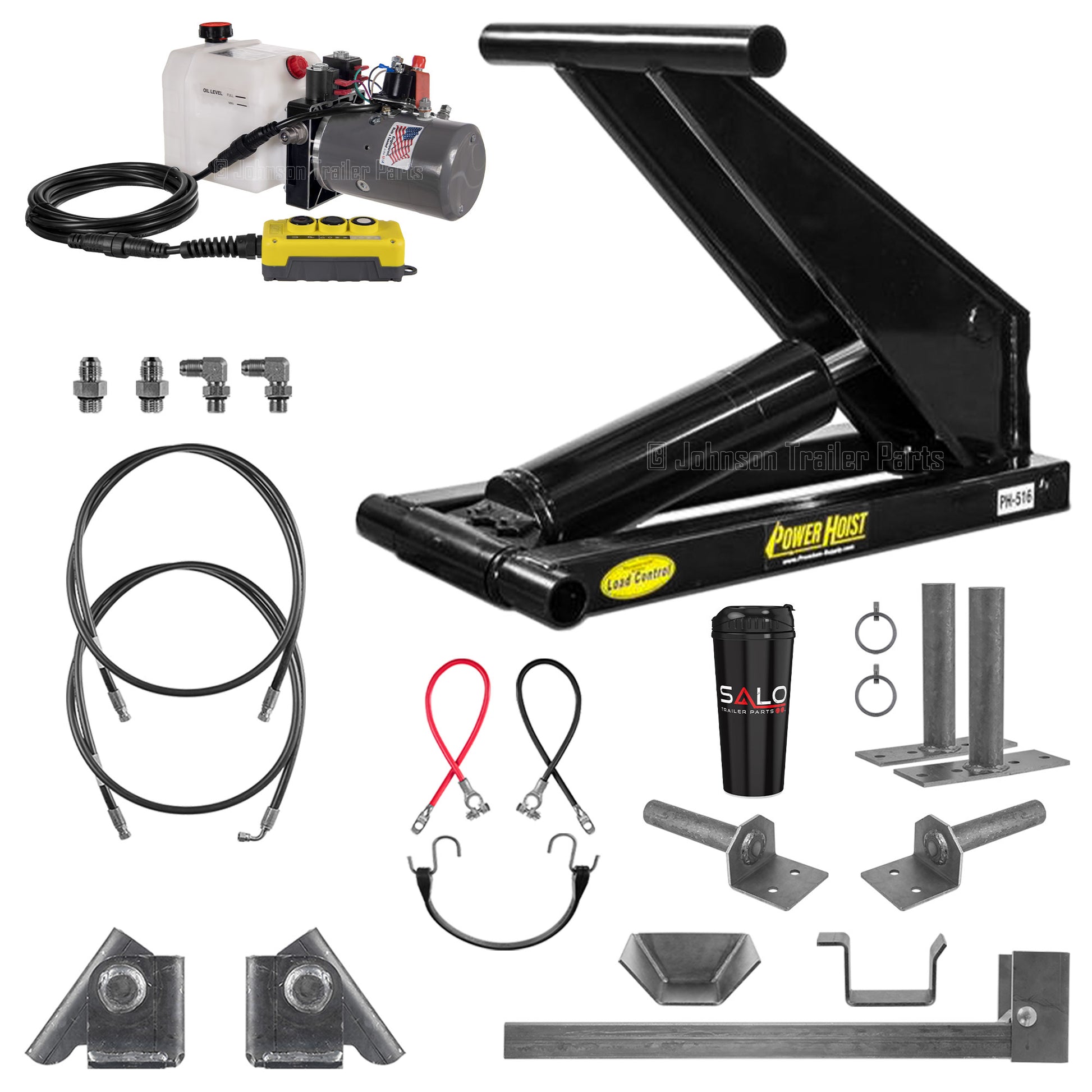

Standard Scissor Hoist Kit Complete with:

• KTI Hydraulic Power Unit (HPU) Double Acting
  • 15’ Control with Power Up / Power Down / Gravity Down
• Hoist Assembly (including steel frame and 5″ hydraulic cylinder)
• Hydraulic Hose Assembly
• Hydraulic Fittings
• Bridon Load Control
• Safety Arm and Safety Arm Cup
• Safety Arm Storage Bracket
• Hinges, Battery Cables, and Rubber Strap
• Safety Labels
• Manual

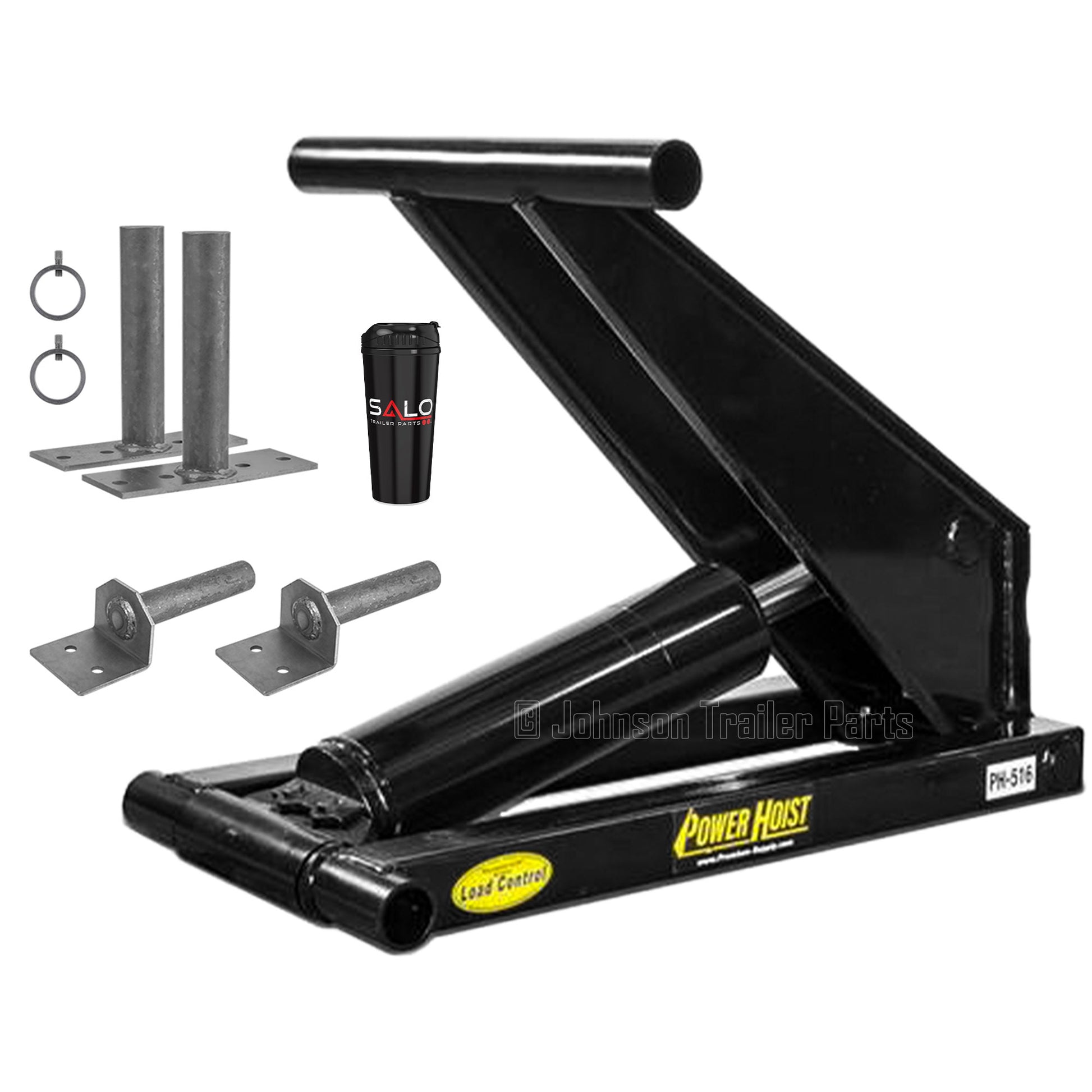

• Hoist Only kit Includes:
  • Hoist Assembly (including steel frame and hydraulic cylinder)
  • Mounting Brackets
  • Does not Includes all the extra components that are included in the Standard or Premium Kits.

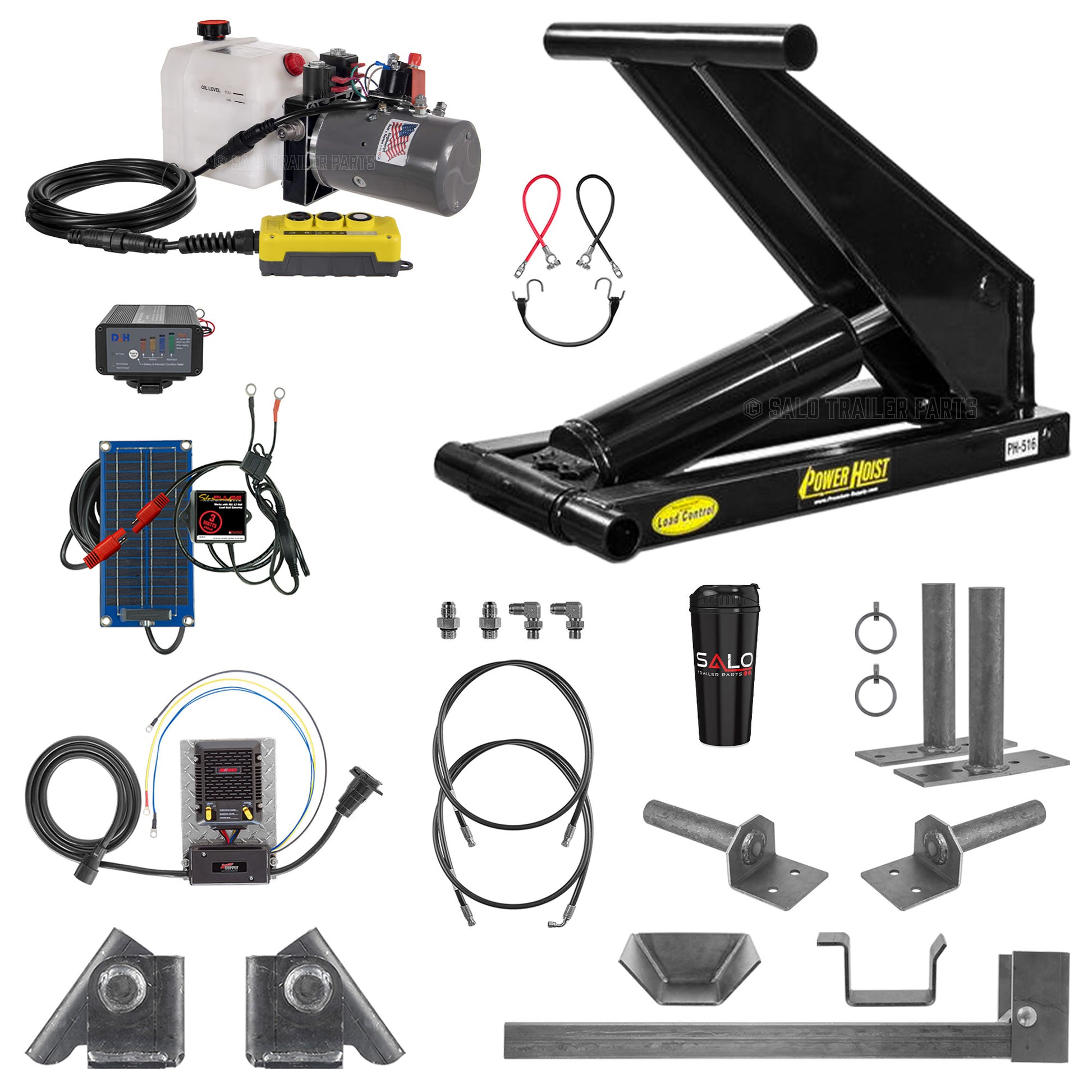

• Premium Kit Includes: (4 Year Warranty)
  • All Parts listed in the Standard Kit
  • Includes Battery Optimizer Kit
    • 20 amp. road charger with 7 way
    • 5 amp battery charger
    • SP-3 – 3 watt SolarPulse panel

Please contact us if you have any questions we can assist you with. (602) 292-9690

Installation Manual

Installation Instructions: For 12VDC, Hydraulic Power Units, Double-Acting (Power Up / Power Down)

Check Out our YouTube Channel for more "How To" Videos.
