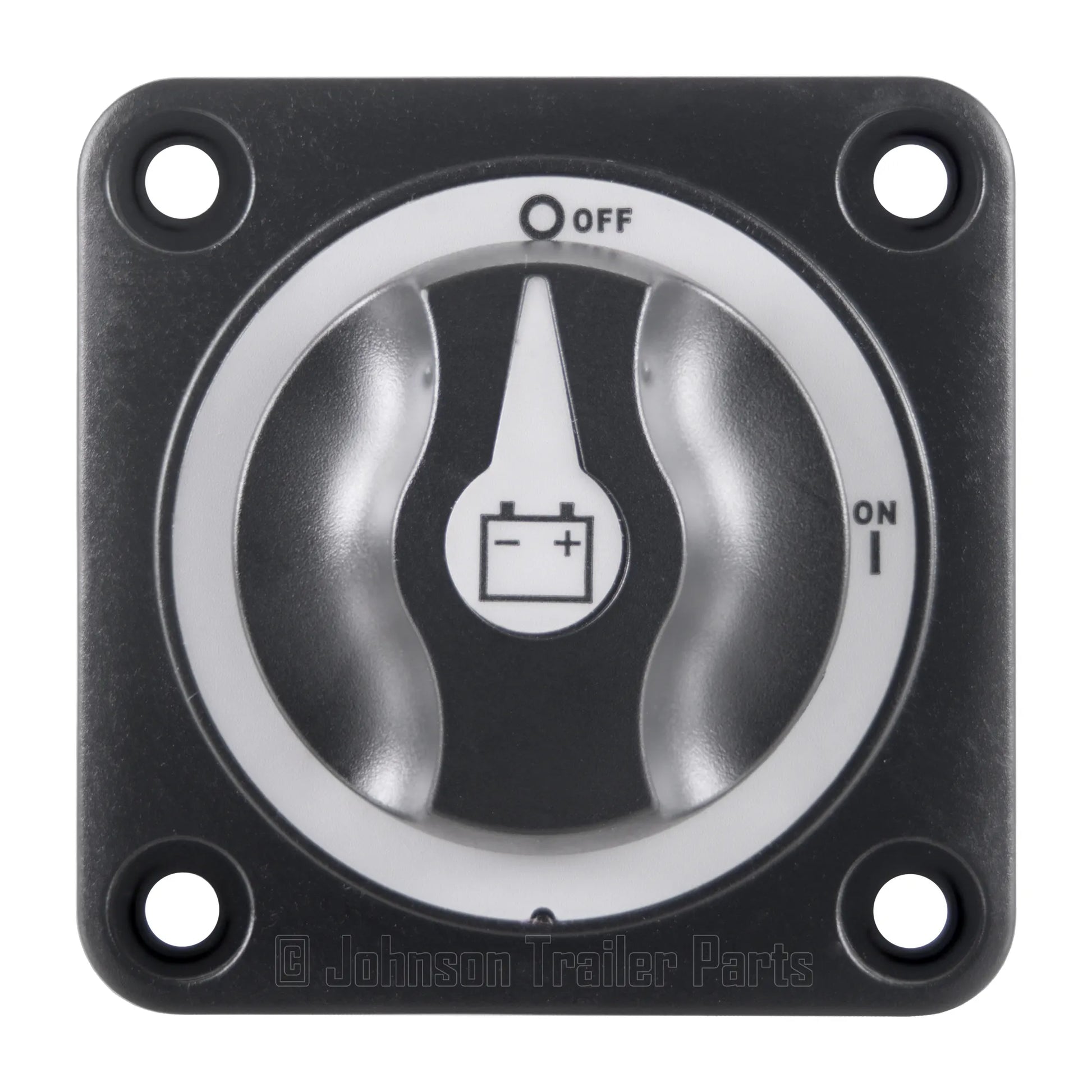

Battery Shut Off Switch – SR Series Master Disconnect Switch
The Battery Master Shut Off Switch is designed to turn off when the trailer mounted hydraulics are not in use. This minimizes amp draw on the battery, while not in use, which helps maximize the batteries ability to keep a charge.
- Part No. 880062
- Isolates high-current DC circuits from battery sources
- 300A continuous current rating
- Stainless steel hardware and tin-plated copper studs
- Can be installed in locations with limited space behind the panel
Specification
- Max Operating Volage: 32V DC
- Max Continuous Current: 300A
- Cranking Rating: (30sec) (1 x 4/0 cable) 1,250A
- Inrush Rating: (2 sec) 3,500A
- Terminal Stud Size: 3/8-16 (accepts M10 terminals)
- Terminal Stud Length: 7/8 (22mm)
- Ingress Rating: IP67 & IP69K
- Ignition Protection: Meets ISO 8846 & SAE J1171
